Bifacial HJT PV Module with 166mm Cell Size and 144 Cells
  • Bifacial HJT PV Module with 166mm Cell Size and 144 Cells
  • Bifacial HJT PV Module with 166mm Cell Size and 144 Cells
  • Bifacial HJT PV Module with 166mm Cell Size and 144 Cells
  • Bifacial HJT PV Module with 166mm Cell Size and 144 Cells

Bifacial HJT PV Module with 166mm Cell Size and 144 Cells

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
HJT PV Module 166mm 144cells Bifacial

Q: What is HJT module?

A: Heterojunction (HJT) is a special PN junction, which combines two different technologies into one cell: a crystalline silicon cell sandwiched between two layers of amorphous "thin-film" silicon. Compared with using any technology alone, these technologies can be used together to harvest more energy.

Q: What is n type Solar Cell?

A: An N-type solar cell consists of a thin p-type silicon (doped with boron) layer over a much thicker n-type silicon (doped with phosphorus) layer. Electrical contacts are applied to both sides. The p-side is the front side facing the sun.

HJT PV Module SKT460~480M6

166MM 144CELLS BIFACIAL HJT MONO HALF CELL PV-MODULE SERIES

Electrical Characteristics (STC/NOCT)

Module Type 430M6 435M6 440M6 445M6 450M6 455M6 460M6
  STC NOCT STC NOCT STC NOCT STC NOCT
Maximum Power - Pmax(W) 430 317.4 435 321.1 440 324.9 445 328.6 450 332.3 455 336.1 460 339.8
Open Circuit Voltage - Voc(V) 48.5 45.3 48.7 45.5 48.9 45.7 49.1 45.8 49.3 46.0 49.5 46.2 49.7 46.4
Short- Circuit Current - Isc(A) 11.31 9.08 11.39 9.15 11.46 9.21 11.53 9.27 11.60 9.33 11.66 9.38 11.73 9.43
Voltage at Pmax - Vmp(V) 40.7 37.7 40.9 37.9 41.1 38.1 41.3 38.3 41.5 38.5 41.7 38.6 41.9 38.8
Current at Pmax - Imp(A) 10.57 8.42 10.64 8.47 10.71 8.53 10.78 8.59 10.85 8.64 10.92 8.70 10.98 8.75
Module Efficiency - ηm(%) 19.8 / 20.0 / 20.2 / 20.5 / 20.7 / 20.9 / 21.2 /
Power Tolerance(W) (0, +4.99W)
Maximum System Voltage(V) 1500Vdc (IEC / UL)
Maximum Series Fuse Rating (A) 20A

STC : Irradiance 1000W/m²，Cell Temperature 25℃，Air Mass 1.5
NOCT: Irradiance 800W/m²，Ambient Temperature 20℃，Air Mass 1.5， Wind Speed 1m/s

Mechanical Specifications

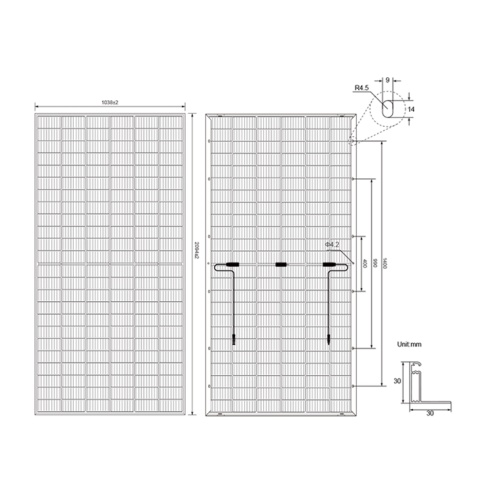

  • External Dimensions: 2094x1038x30mm
  • Weight: 27kg
  • Solar Cells: Mono crystalline 166mm (2x72pcs)
  • Front Glass: AR Coated 2mm+2mm tempered glass
  • Frame: Anodized aluminum alloy
  • Junction Box: IP68
  • Output Cables: 4.0mm², 50cm (+), 50cm (-), length can be customized
  • Connector: MC4 Compatible
  • Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa

Temperature Characteristics

  • Pmax Temperature Coefficient: -0.350%/℃
  • Voc Temperature Coefficient: -0.275%/℃
  • Isc Temperature Coefficient: +0.045%/℃
  • Operating Temperature: -40～+85℃
  • Nominal Operating Cell Temperature(NOCT): 45±2℃
20240423135604 Png 20240423135619 Png 20240423135639 Png
