Product Attributes

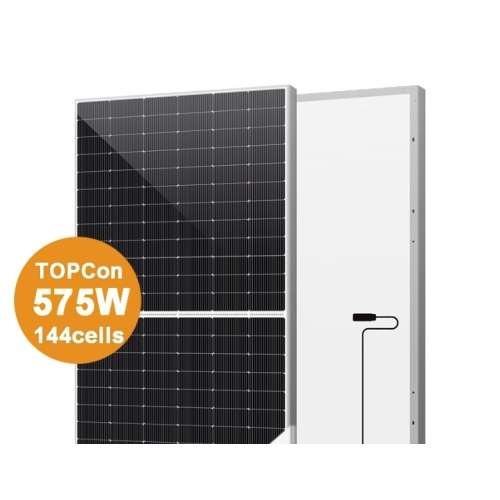

- Model No.: 575M10/TOPCon
- Brand: HAOXUAN
- Place Of Origin: China
- Types Of: Half Cell, Bifacial, Double-Glass, All Black
- Weight: 28kg
- Connector: MC4 Compatible
- Junction Box: IP68
- Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
- Front Glass: AR Coated 3.2 mm tempered glass
- Frame: Anodized aluminum alloy
- Output Cables: 4.0mm², 50cm (+), 50cm (-), length can be customized
- Solar Cells: Mono crystalline 182mm (2x72pcs)
- External Dimensions: 2278x1134x35mm
- Brand: Sunket
Product Name:
TOPCON Solar Panel, TOPCON Solar PV Module, TOPCON PV Module
TOPCON Solar Panel 420~430M10 182MM 108CELS
16BB TOPCON MONO HALF CELL PV-MODULE SERIES
25 POWER WARRANTY
≤1% First year degradation
-0.4% Liner degradation
The new product uses N-type TOPCon technology and is fully enhanced in performance, power, Energy Density and reliability.
The mass production efficiency of Haoxuan N-type TOPCon solar cells has reached 24.5%, the bifacial ratio of modules is up to 85%, and the additional power generation gain has increased by more than 3%. In 2022, Haoxuan will continue to focus on improving the efficiency of mass production of batteries, leading the efficiency and economy of TOPCon Series products to a new high, and bringing customers higher installed capacity.
Module Type
| | STC | NOCT | STC | NOCT | STC | NOCT |
| Maximum Power - Pmax(W) | 420 | 316 | 425 | 320 | 430 | 323 |
| Open Circuit Voltage - Voc(V) | 38.11 | 36.20 | 38.30 | 36.38 | 38.49 | 36.56 |
| Open Circuit Current - Isc(A) | 14.07 | 11.36 | 14.15 | 11.42 | 14.23 | 11.49 |
| Voltage at Pmax - Vmp(V) | 31.51 | 29.34 | 31.70 | 29.50 | 31.88 | 29.63 |
| Current at Pmax - Imp(A) | 13.33 | 10.76 | 13.41 | 10.83 | 13.49 | 10.91 |
| Module Efficiency - ηm(%) | 21.51 | / | 21.76 | / | 22.02 | / |
| Power Tolerance(W) | (0, +4.99W) |
| Maximum System Voltage(V) | 1500Vdc (IEC / UL) |
| Maximum Series Fuse Rating (A) | 25A |
RAW MATERIAL DISPLAY
GLASS BY XINYI, SG, CNBM
12% ULTRA CLEAR TEMPERED GLASS
30% LOWER REFLECTION
CELL BY JINKO, LONGl, TW
24.5% HIGH EFFICIENCY,
16BB CELLS LOW BREAKAGE RATE
FRAME BY TENTOP
120N TENSILE STRENGTH FRAME
(BLACK/SILVER/THICKNESS CUSTOMIZED)
JUNCTION BOXES BY Huayu
IP68 WATERPROOF LEVEL
PV Connector BY Huayu
500N TENSILE STRENGTH
WATERPROOF LABELS
OEM OPTIONAL
Quality Control
100% digital workshop
each step will be recorded and included in the mes system. automatic production process, effectively avoid human error, ensure the entire production process from raw material inspection to packaging online monitoring, and save it for later use.
100% external assessment
before and after lamination, intelligent alarm and stop mechanism in case of any deviation or errors.
100% EL testing
before and following lamination, twice testing ensure no micro crack monitoring before final inspection. continuous line monitoring and video/photo record for each cell and panel.
