130W Commercial Micro Solar Panel

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

Commercial Micro Solar Panel 130w

Product Attributes

Model No.: HX130M6-12
Brand: HAOXUAN
Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black

Supply Ability & Additional Information

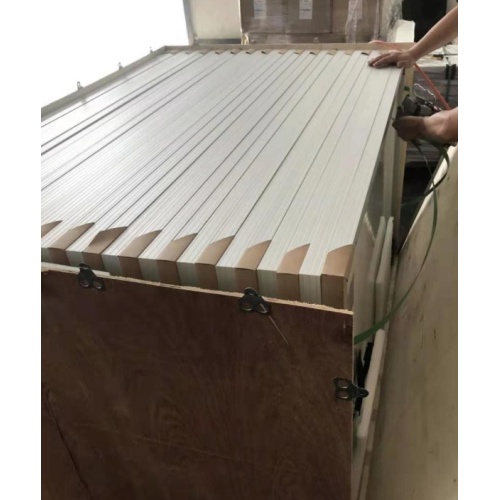

Packaging: Standard Exported Pallet
Productivity: 4000pcs/day
Transportation: Ocean, Land, Air
Place of Origin: China
Supply Ability: 1GW/Year
Certificate: CE, TUV, INMETRO, PSI, COC
HS Code: 8541430000
Port: Shanghai, Guangzhou, Ningbo
Payment Type: L/C, T/T
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Packaging & Delivery

Selling Units: Watt/Watts | Package Type: Standard Exported Pallet

Solar Panel

Mono Solar Panel

Anti-reflective coating: AR used reduces the reflectivity to enhance transmittance.

Tempered Glass: Low Iron and AR coating glass increase the power output and mechanical strength of the Solar Module. Mechanical load ≥2400Pa, transmittance ≥91.6%

EVA: Transmittance ≥91%, Adhesive Capacity >85%

Cell: 17.9% of high-efficiency solar cells to ensure 15.7% module efficiency

Back sheet: Using higher quality back sheet to prevent destroying and water, it’s reflectivity ≥87%, peeling strength ≥ 40N/cm.

Aluminum Frame: Anodized aluminum alloy to effectively improve the corrosion resistance and strength

Product Description

free solar panel sample micro solar panel from shanghai

Mechanical Specifications

working Conditions
solar Cells: 133.25*156mm (36pcs)
Maximum System Voltage(V): 715
Dimensions: 1270*674*35mm
Maximum Series Fuse Rating (A): 20
Weight: 9.5kg
Operating Temperature: -40~+85℃
Front Cover: 3.2 mm thick, tempered glass
Power Tolerance(W): (0,+4.99)
back Cover: TPT (Tedlar-PET-Tedlar)
Output Cables: OEM
Encapsulation Material: EVA (Ethylene Vlinyl acetate)
Connector: PV Compatible
Frame: Anodized aluminum alloy
Material: Monocrystalline Silicon
Frame Color: Silvery
Junction Box: IP67

Product Categories : Mono Solar Panel > Customized Mono Solar Panel
