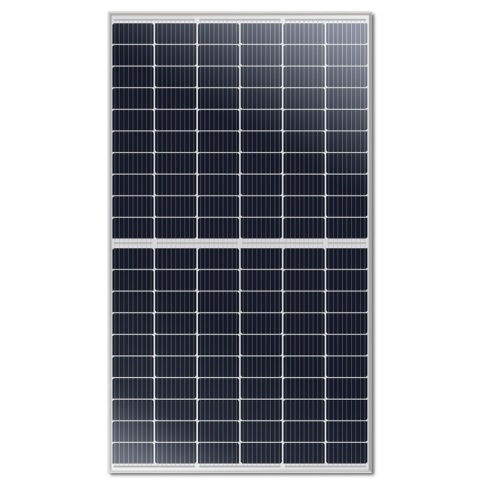

All Black Bifacial Monocrystalline Solar Panel 360W
  • All Black Bifacial Monocrystalline Solar Panel 360W
  • All Black Bifacial Monocrystalline Solar Panel 360W
  • All Black Bifacial Monocrystalline Solar Panel 360W
  • All Black Bifacial Monocrystalline Solar Panel 360W

All Black Bifacial Monocrystalline Solar Panel 360W

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
All Black Bifacial Solar Panel Mono 360W

Product Attributes

  • Model No.: 360M6-20
  • Brand: Haoxuan
  • Place Of Origin: China
  • Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black

Supply Ability & Additional Information

  • Packaging: Standard Exported Pallet
  • Productivity: 4000pcs/day
  • Transportation: Ocean, Land, Air
  • Place of Origin: China
  • Supply Ability: 2GW/Year
  • Certificate: CE, TUV, INMETRO, PSI, COC
  • HS Code: 8541430000
  • Port: Shanghai, Guangzhou, Ningbo
  • Payment Type: L/C, T/T
  • Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Packaging & Delivery

Selling Units: Watt/Watts
Package Type: Standard Exported Pallet

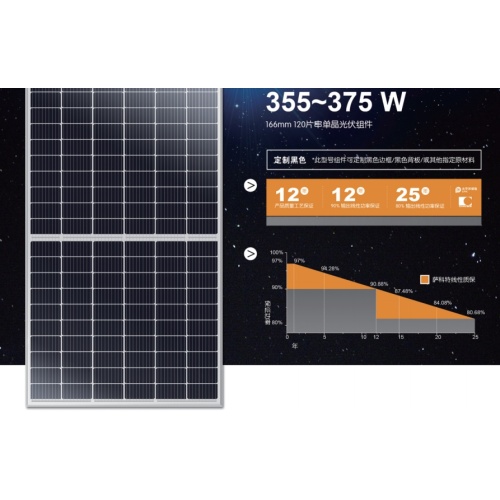

Product Showcase

20240423131920 Png

Product Description

All Black Bifacial Solar Panel Mono 360W

Mechanical Specifications

  • Working Conditions
  • Solar Cells: 166mm (120HC)
  • Maximum System Voltage (V): 1000/1500Vdc (IEC/UL)
  • Dimensions: 1768*1048*35mm
  • Maximum Series Fuse Rating (A): 25A
  • Weight: 19.5kg
  • Operating Temperature: -40~+85℃
  • Front Cover: 3.2 mm thick, tempered glass
  • Power Tolerance (W): (0,+4.99)
  • Back Cover: TPT (Tedlar-PET-Tedlar)
  • Output Cables: 4.0 mm², Cable length: 500 mm
  • Encapsulation Material: EVA (Ethylene Vlinyl acetate)
  • Connector: MC4 Compatible
  • Frame: Anodized aluminum alloy
  • Mechanical Load: Front Side Max. 5400 Pa, Rear Side Max. 2400 Pa
  • Frame Color: Silvery
  • Junction Box: IP68

Electrical Specifications

  • Module type: 360M6-20
  • Maximum Power (Pmax): 360W
  • Open Circuit Voltage (Voc): 40.9V
  • Short Circuit Current (Isc): 11.20A
  • Max. Power Voltage (Vm): 33.7V
  • Max. Power Current (Im): 10.69A
  • Temperature coefficients of Isc (%): 0.048/℃
  • Temperature coefficients of Voc (%): -0.270/℃
  • Temperature coefficients of Pm (%): -0.350/℃
  • Module Efficiency (%): ≥19.44%
20240423131932 Png
